  • Frame
    Double Peak I/O X6 Aluminum frame for Shimano STePS
  • Fork
    SR Suntour XCM32 / E-BIKE E-45, 100mm travel
  • Weight
  • Cranks
    FSA for STePS
  • Pedals
    Wellgo Full alloy, 9/16" Crmo axles
  • Chain
    KMC X10-E
  • Rear Derailleur
    Shimano Deore, RD-6000, 10-spd, Shadow Plus
  • Derailleur Shifter
    Shimano Deore RapidFire+ 10-spd
  • Freewheel/Cassette
    Shimano Deorre HG-500, 10-spd, 11-42T
  • Tires
    Kenda Honey Badger, 27.5x2.20, 60tpi
  • Wheels/Rims
    Pivit Alloy disc 32h cassette, Sealed Bearing Front w/ Thru-Axle & Rear Quick Release
  • Brakes
    Shimano M365 Hydraulic Disc, 180mm / 160mm Rotors
  • Brake Levers
    Shimano M365 Hydraulic
  • Grips/Tape
    WTB Weirwolf
  • Handle Bar
    Alloy riser bar, 25mm Rise
  • Stem
    3D Forged alloy
  • Headset
    FSA Orbit No. 10
  • Saddle
    WTB Rocket Sport
  • Seat Post
    Pivit Alloy Microadjust 31.6 x 350mm


Color: Charcoal
    • New MY18 DP COMP I/O frame, X6 alloy, for E-6000 motor, external battery 1-1/8" head tube
    • Suntour XCM32 / E-Bike E-45, 100mm travel
    • Shimano STePS E6050 Drive unit / 250 Watts, STePS 450 w/h battery
    • Shimano Deore RD-6000, 10-spd, Shadow Plus rear derailleur,
    • Deore 10-spd, 11-42T Cassette
    • FSA crankarms for STePS E-6000 motor
    • Shimano M365 hydraulic disc brakes, 180mm / 160mm rotors

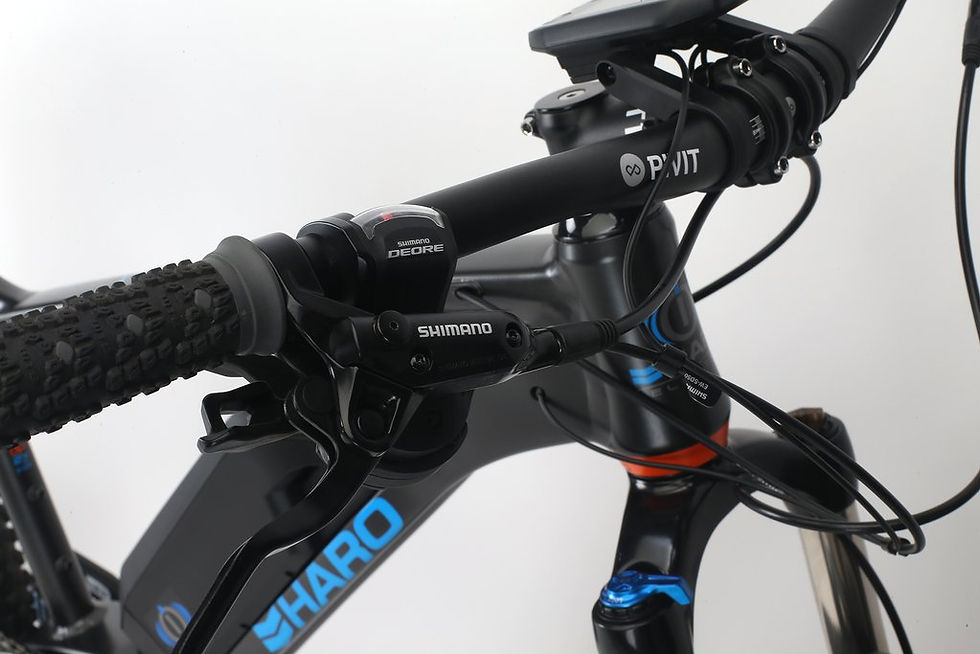

    The Double Peak i/O is made of Proprietary X6 alloy and sports distinctively smooth and flowy lines designed to lower stand over height and center of gravity. In addition , it includes proprietary SpeedStays for outstanding handling and performance. It comes with a semi complete Deore 10 speed 1X drive train and is powered by both you and Shimano's STePS 6050 mid motor drive unit programed for on road and light off road use. Double Peak i/O comes equipped with a Suntour XCM ebike specific suspension fork with 100mm of travel with lockout. It rolls along on Kenda Honey Badger 27.5" x 2.20 60tpi tires mounted to a pair of Pivit 32h alloy double wall rims, and the rolling stops courtesy of Shimano M365 hydraulic disk brakes.
