FRAME
Genius Alloy SL 6011
custom butted / Virtual 4 Link Design
27.5 (2.6 & 2.8) and 29 (2.4 & 2.6) tire compatible with Geo -BB adj.
TBC Trunnion box construction / Boost 12x148mm

FORK
Rock Shox Recon RL Solo Air
15x110mm QR axle / Tapered Steerer
Reb. Adj. / 2 Modes / Lockout / 140mm travel

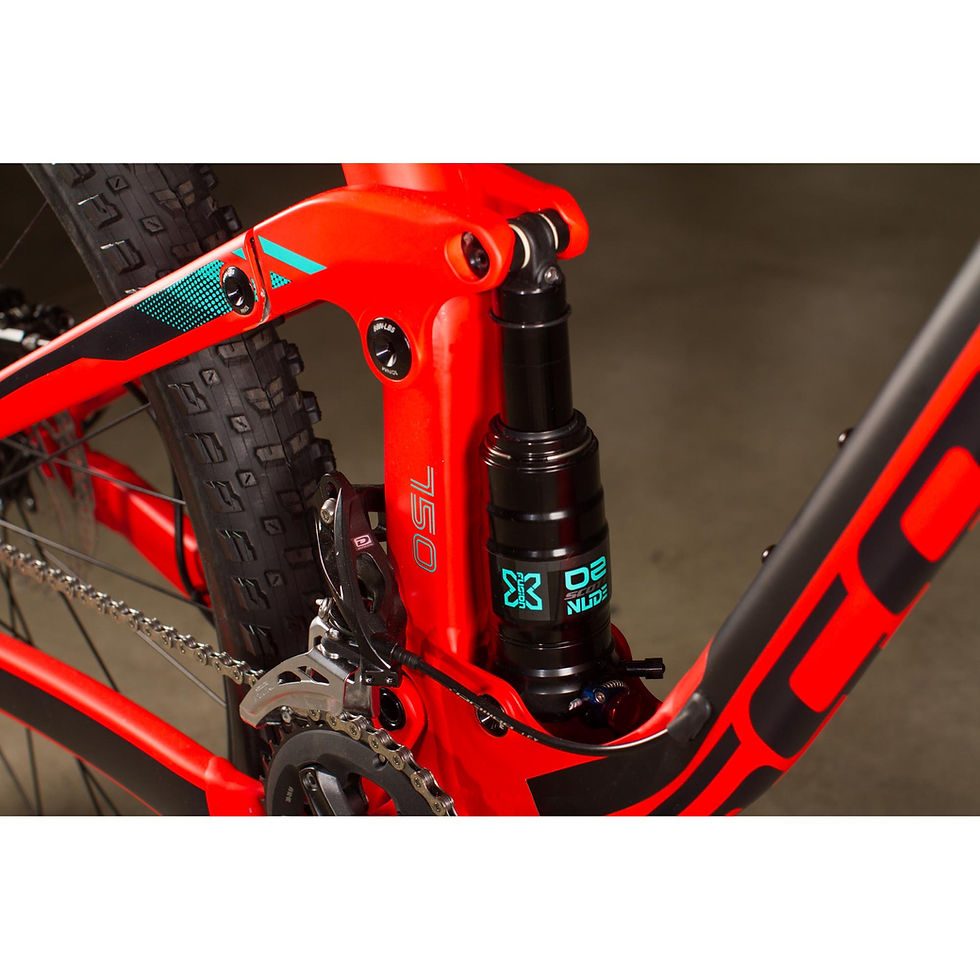

REAR SHOCK
X-Fusion NUDE Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout - Traction Control -Descend
Reb. Adj.
Travel 150 - 100 - Lockout / 185X55mm

REMOTE SYSTEM
SCOTT TwinLoc Remote Technology

HEADSET
Syncros OE Press Fit E2 / Tapered 1.5" - 1 1/8"
OD 50/62mm / ID 44/56mm

REAR DERAILLEUR
Shimano SLX RD-M7000-10 SGS
Shadow Plus / 20 Speed

FRONT DERAILLEUR
Shimano Deore FD-M6020-D / / side swing

SHIFTERS
Shimano Deore SL-M6000-I / Rapidfire Plus
2 way release

BRAKES
Shimano M396 Disc
180mm F & R / SM-RT30 CL Rotor

CRANKSET
Shimano FC-MT500-B2-10 Boost
36x26 T

BB-SET
Shimano BB-MT500-PA / shell 41x92mm

HANDLEBAR
Syncros FL2.0 mini Riser / Alloy 6061D.B.
12mm rise / 9° / 760mm
Syncros Pro lock-on grips

H'STEM
Syncros FL2.0 / 6061 Alloy
6° / integrated Top Cup / 31.8mm / 1 1/8"

SEATPOST
Syncros Dropper 2.0 / Remote
31.6mm / S size 100mm / M 125mm / L & XL 150mm

SEAT
Syncros XM 2.5

HUB (FRONT)
Shimano HB-M6010-B CL / 15x110mm

HUB (REAR)
Shimano FH-M6010-B CL / Boost 12x148mm

CHAIN
KMC X10

CASSETTE
Shimano CS-HG50-10 / 11-36 T

SPOKES
Stainless Black 15G / 1.8mm

RIMS
Syncros X-30S / 32H / 30mm / Sleeve Joint
Tubeless ready

TIRES
Maxxis Rekon / 2.80 x 27.5 / 60TPI Kevlar Bead
TR Tubeless ready
Dual compound
