FRAME
Spark RC Carbon / IMP technology / HMX SL
1x optimized / BB92 /
Carbon swingarm / SW dropouts for Boost 12x148mm
TBC Trunnion Box Construction
lightest frame 1799g (w/shock)
FORK
FOX 32 SC Float Factory Air / Kashima
FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle
tapered steerer / Lockout / Reb. Adj.
100mm travel
REAR SHOCK
FOX NUDE Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout - Traction Control -Descend
DPS / Kashima / Reb. Adj.
Travel 100 - 70 - Lockout / 165X40mm
REMOTE SYSTEM
SCOTT TwinLoc Suspension System / below Bar Remote
3 modes / integ. Grip clamp
HEADSET
Syncros FL1.5 Drop in / Tapered 1.5" - 1 1/8"
Ti bearing diameter size 42mm and 52mm
REAR DERAILLEUR
Sram XX1 / Eagle 12 Speed
FRONT DERAILLEUR
SCOTT Chainguide
SHIFTERS
Sram XX1 Trigger
BRAKES
Sram Level Ultimate Disc / tool free reach adj
180/F and 160/Rmm Centerline CLX Rotor
CRANKSET
Sram XX1 Eagle GXP Boost PF Carbon crankarm
QF 168 / 32T
BB-SET
Sram GXP PF integrated / shell 41x92mm
HANDLEBAR
Syncros FL1.0 SL Carbon T-Bar
T shape flat / 9° / 720mm
Syncros Pro lock-on grips
H'STEM
Syncros XR1.5 -8°
Integrated Spacer & Top Cup
2014 Alloy / 31.8mm / 1 1/8" / Garmin mount
SEATPOST
Syncros FL1.0 SL Carbon
10mm offset / 31.6 x 400mm
SEAT
Syncros XR1.0 SL / Carbon rails
WHEELSET
DT Swiss XRC 1200 Carbon Spline CL
F: 15x110mm, R: 12 x 148mm Boost
25mm Tubless ready rim / 28H / XD
DT RWS w/Removable Lever with Tool
CHAIN
Sram PCXX1 Gold Eagle
CASSETTE
Sram XX1 / XG1299 / Gold / 10-50 T
TIRES
Maxxis Aspen / 2.25 / 120TPI Kevlar Bead
TR Tubeless Ready / EXO / 3C maxx Speed
Syncros Eco Sealant

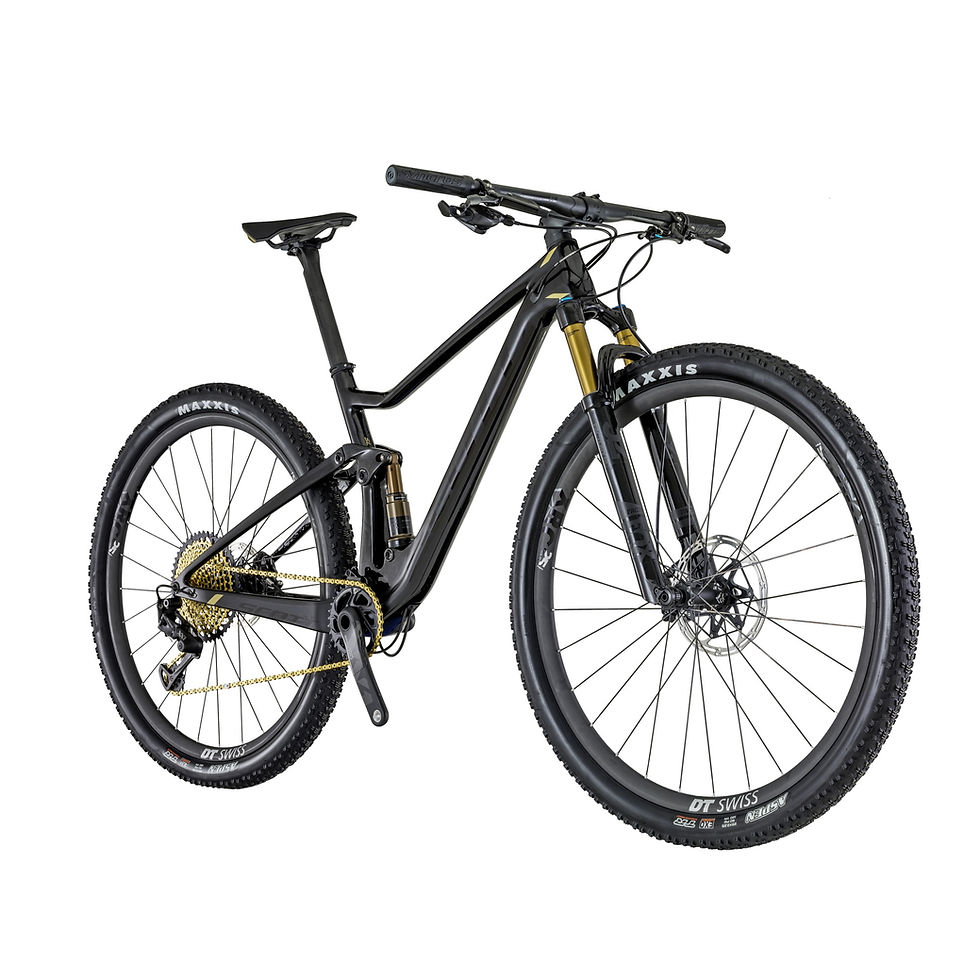

SCOTT SPARK RC 900 SL BIKE
- Spark RC Carbon HMX SL 1799g Frame
- FOX 32 SC Float Factory 100mm Fork
- FOX Nude, TwinLoc Remote
- Sram XX1 Eagle 12 Speed
- Sram Level Ultimate Disc Brakes
- DT Swiss XRC1200 Carbon TR Wheels
- Maxxis Aspen Kevlar Tires
- Syncros SL Carbon Parts
The SCOTT Spark has the most successful pedigree of any cross-country full suspension bike ever made, and that lineage is fully expressed in the Spark RC 900 SL. At less than 1800 grams with rear shock, this race-bred, 100mm travel frame is the lightest Spark ever made. The Spark RC 900 SL is dressed to win with our TwinLoc Suspension System with a FOX 32 SC Factory Air fork, SRAM XX1 Eagle 12-speed drivetrain, and SRAM Level Ultimate brakes.
